Gear Design & Service Pty Ltd
Gear racks
Spur gears
Gear manufacturer
Straight bevel gear
Spur, helical and worm gears
Specializing in all gear manufacturing
CNC gear cutting a spiral bevel gear

Spiral bevel gear

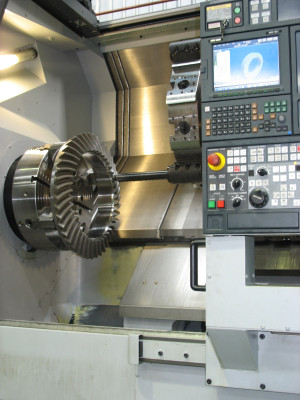

Finish turning a spiral bevel crown wheel on a CNC lathe. Diameter of bevel gear 650mm.
Klingelnberg for cutting a spiral bevel gear

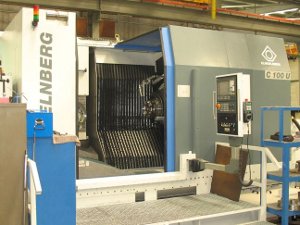

Klingelnberg C100U Bevel Generator

CNC C100U spiral bevel generator capable of cutting spiral bevel gears over 1200mm diameter and “hard cut” finishing of the tooth profile.
Gear cutting a spiral bevel gear

Klingelnberg Cyklo-Palloid cut Spiral Bevel Gear

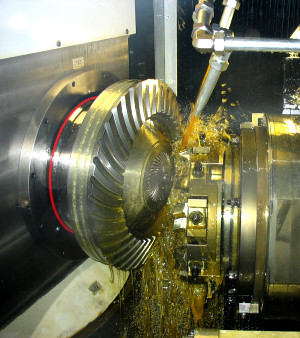

A spiral bevel gear on the C100U, cut using the Klingelnberg Cyklo-Palloid system.
Cutting a spiral bevel gear on a Klingelnberg CNC machine at Gear Design & Service Pty Ltd

Spiral bevel gear

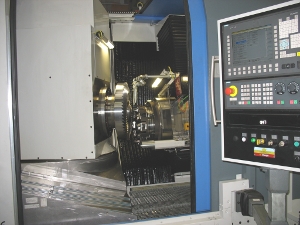

Cutting a spiral bevel crown wheel 550 mm diameter in a 7-axis CNC Klingelnberg bevel generator.
Cutting a large spur gear at Gear Design & Service Pty Ltd

Spur gear

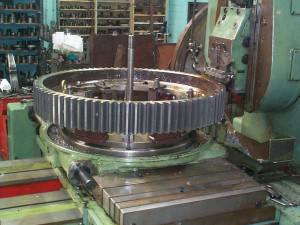

Cutting a 1.5 meter spur gear with a 200mm face width and a pitch of 1.5 D.P.
Large straight bevel gear at Gear Design & Service Pty Ltd

Straight bevel gear set

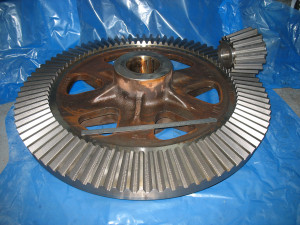

A 1.4 meter diameter set of straight bevels. The crown wheel was re cut and a new pinion manufactured to suit.
Double helical gear at Gear Design & Service Pty Ltd

Double helical gear

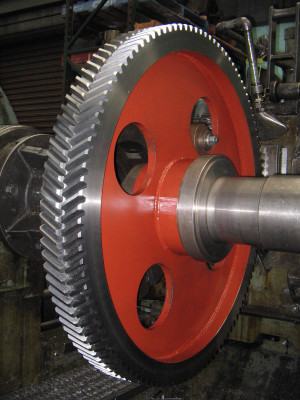

Manufacturing a 1.8 meter diameter double helical gear for a large automotive press.
Double helical gear being cut in a lathe

Double helical pinion

Finish turning a 1.5 D.P. pitch double helical pinion before flame hardening the teeth.
